HD Galvanized 2.7mm Retaining Wall Rock Filled Woven Gabion Basket
Woven Gabion Mesh introduction:
Woven gabion mesh is a double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, and filled with stone at the project site to form flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.
Hot dipped galvanized wire Hot dipped galvanized wire+pvc
Galfan coating(5%AL+95%ZN)/+pvc coating
Super galfan coating()10%AL+90%ZN)/+pvc coating
Woven Gabion Mesh Specification:
| Material | Galvanized wire |
|
Surface treatment | Hot dipped galvanized (Zinc Coated) |
| Galfan coated: 95% Zinc + 5% Aluminum, 90%Zinc +10% Aluminum |
| Zinc(galvanized) + PVC Coated (Gray or Green) |
| Gabion Basket/Gabion Box/Gabion Mesh/Gabion Cage Specification |
| Wire diameter | 2.0-4.0mm |
| Mesh opening | 80 x 100mm | 90 x 110mm | 100 x 120mm | 60 x 80mm etc. |
| Dimension | 1x0.5x0.5m, 1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x0.5m, 3x2x0.3m, 3x2x0.17m, 3x1x1m, 4x1x0.5m, 4x1x1m, 4x2x0.3m, 5x1x1m, 5x1x0.5m,
6x2x0.3m or as request |
| Material | galvanzied wire |
| Wire diameter | 2.0-4.0mm |
| Mesh Size | 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm |
| Surface treatment | hot-dipped galvanzied/PVC coated |
| Color | silver/green/black green |
| Application | soil, bridge construction, water bank |
| Specifications offered |
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M3 | |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | length+-3% |
| 2 | 1 | 0.5 | 1 | 1 | width+-5% |
| 3 | 1 | 0.5 | 2 | 1.5 | height+-5% |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | Hole size |
| 1.5 | 1 | 1 | 0 | 1.5 | 60x80mm |
| 2 | 1 | 1 | 1 | 2 | 80x100mm |
| 3 | 1 | 1 | 2 | 3 | 100x120mm |
| 4 | 1 | 1 | 3 | 4 | |
Woven Gabion Mesh advantages:
Gabion mesh or gabion box has some obvious advantages ,such as corrosion prevention ,eletrostatic prevention ,age resistance ,corrosion-resistance ,compressive resistance ,sheaving resistance and improving the protective function in the highly polluted environment.This kind of mesh mainly used in river,sea and highly polluted area.
Woven Gabion Mesh Application:
a. Control and guide of water or flood
b. Prevent of rock breaking
c. Protect rock fall
d. Protect Water and soil protection
e. Protect bridge
f. Strengthen structure of soil
g. Protect engineering of seaside area.
h. Build Port project
i. Keep off dust wall
j. Protect roadway
Woven Gabion Mesh Package:
1. compacted before packaging.
2. Plastic packaging outside and on the pallet.
3. 20'container can contain more than 8,000 square meters.
40' container can contain more than 15,000 square meters
Product Tags:
|
|

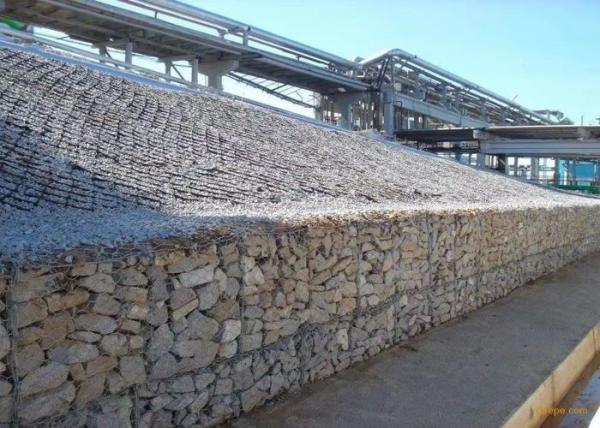

Retaining Wall 80x100 2.7mm Woven Gabion Basket Images
|
