Zinc Aluminum Alloy Pvc Coated Stone Cage Net 2x1x0.5m Wire Mesh Corrosion Resistance River Bank Gabion Wall Mesh
Galvanized Gabion Mesh Information:
A double-twisted wire mesh is a non-raveling mesh made by twisting continuous pairs of wires through three one half (1⁄2) turns (commonly called double-twisted) to form hexagonal shaped openings which are then interconnected to adjacent wires to form hexagonal openings. We can supply double-twisted hexagonal mesh in rolls of 1 x 50mtrs, 2 x 50mtrs, the widest can be 2.3mtrs. The wire mesh can be used to protect rock fall.
PVC Coated Gabion Baskets
Wire diameter:2.7/3.7mmedge Wire:3.4/4.4mm
Tie wire:2.2/3.2mm
Size: 2x1x1m/3x1x1m
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc :250g/㎡
1x1x1m PVC Coated Gabion Basket
Wire diameter:2.7/3.7mmedge Wire:3.4/4.4mm
Tie wire:2.2/3.2mm
Size: 3x1x1m/4x1x1m
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc :250g/㎡
Surface Treatment:
1.Electric galvanized 20g~65g/m2
2.Hot-dipped galvanized 65g~360g/m2
3.PE or PVC coated (green,blue etc.)
4.Galfan coated 95% zinc and 5% Aluminum/90% zinc and 10% Aluminum
Sizes: 1x1x0.5m,1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x1m, 3x1x0.5m, 4x1x0.5m, 4x1x1m, 6x2x0.3m,Custom orders available.
Mesh Size: 60*80mm, 80*100mm,100*120mm, 120*150mmCustom orders available.
Weaving Patterns: Straight Twist; Reverse Twist;Double Twist; Electro Galvanized before or after Weaving;Hot-dipped Galvanized before or after Weaving;
Application: Control and guide of water or flood, Preventing of rock breaking, Rock fall protection, Water and soil protection, Bridge protection
Featuers:Strong structure and corrosion-resistance to protect the dam and riverbank
Package:1. compacted before packaging. 2. Plastic packaging outside and on the pallet. 3. 20'container can contain more than 8,000 square meters. 4.40' container can contain more than 15,000 square meters
Surface Treatment of 2.2mm Gabion Mesh Box 60x80mm Mesh for River Bank
1. Hot-dip galvanized, ( Zinc coating: 50g/m2)
2. Heavy Hot-dip galvanized, ( Zinc coating: Min 240g/m2)
3.Galfan Coating, (Zn - 5Al/10Al - MM coating)
4. Electro Galvanized +PVC Coated, Hot-dip galvanized+PVC Coated, Heavy Hot-dip galvanized +PVC Coated
5. Galfan coating +PVC Coated,
Specification:
| Woven / hexagonal wire mesh gabion basket |
| Application | Control and guide of water or flood
Strengthening structure of soil
Protection engineering of seaside area |
| Material | Low carbon steel wire, Stainless steel wire, PVC coated wire |
| Surface Finish | Electro galvanized, Hot-dipped galvanized, Galfan coated, PVC coated |
| Connect Way | by Helical wire, by U post, H post |
| Material | galvanzied wire |
| Wire diameter | 2.0-4.0mm |
| Mesh Size | 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm |
| Surface treatment | hot-dipped galvanzied/PVC coated |
| Color | silver/green/black green |
| Application | soil, bridge construction, water bank |
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M3 | |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | length+-3% |
| 2 | 1 | 0.5 | 1 | 1 | width+-5% |
| 3 | 1 | 0.5 | 2 | 1.5 | height+-5% |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | Hole size |
| 1.5 | 1 | 1 | 0 | 1.5 | 60x80mm |
| 2 | 1 | 1 | 1 | 2 | 80x100mm |
| 3 | 1 | 1 | 2 | 3 | 100x120mm |
| 4 | 1 | 1 | 3 | 4 | |
Product Tags:
|
|

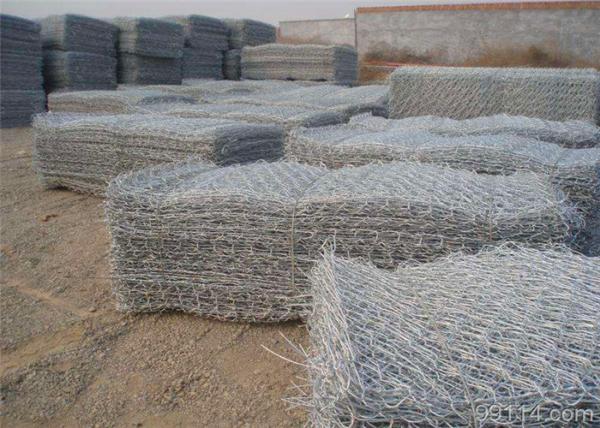

Zinc Aluminum Alloy Pvc Coated 2.7mm Gabion Box Retaining Wall Images
|
