Mil 7 Hesco Barriers Military Gabion Wall Flood Barrier Galvanized Coating 2x1x1m Hesco Defensive Barriers
Gabion Hesco Barrier introduction:
Gabion Mesh are made of double - twisted hexagonal wire mesh. To fill with stones at the river bank or seaside to stop flood, on the mountain prevent rock falling.
Wire diameter: 3.0mm, 4.0mm,5mm
Mesh size: 50mmx50mm, 76.2mmx76.2mm,100mmx100mm
Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customers requirement
Geotextile: in heavy duty non-woven polypropylene
Finish: hot dipped galvanized, galfan coated
Packing: packed in pallet then wrapped with shrink film
Gabion material: galvanized coating, pvc coated, galfan coating, etc.
Gabion main wire: 2.2mm 2.7mm 3.0mm etc
Gabion selvedge wire: 2.7mm 3.4mm 3.8mm etc
Gabion mesh size: 6x8cm 8x10cm 10x12cm 12x15cm etc
Gabion size: 2x1x1m 3x1x1m 4x1x1m 3x2x0.3m 4x2x0.3m 6x2x0.3m etc
Gabion application: conrol and guide of water or flood, strengthening structure of soil, protection engineering of seaside area
Gabion Hesco Barrier Specification:
Product size:
| Hesco bastion barrier |
| PRODUCT ITEM | HEIGHT | WIDTH | LENGTH | CELLS NO |
| MIL1 | 54’’(1.37M) | 42’’(1.06M) | 32’9’’ | 5+4cells |
| MIL2 | 24’’(0.61M) | 24’’(0.61M) | 4’’ | 2cells |
| MIL3 | 39’’(1.00M) | 39’’(1.0M) | 32’9’’ | 5+5cells |
| MIL4 | 39’’(1.00M) | 60’’(1.52M) | 32’9’’ | 5*2+5*2cells |
| MIL5 | 24’’(0.61M) | 24’’(0.61M) | 10’’ | 5cells |
| MIL6 | 66’’(1.68M) | 24’’(0.61M) | 10’’ | 5cells |
| MIL7 | 87’’(2.21M) | 84’’(2.13M) | 91’’ | 5+4+4cells |
| MIL8 | 54’’(1.37M) | 48’’(1.23M) | 32’9’’ | 5+4cells |
| MIL9 | 39’’(1.00M) | 30’’(0.76M) | 30’’ | 6+6cells |
| MIL10 | 87’’(2.21M) | 60’’(1.52M) | 100’’ | 5+5+5+5cells |
| MIL22 | 48’’(1.22M) | 12’’(0.30M) | 4’’ | 2cells |
| MIL12 | 84’’(2.13M) | 42’’(1.06M) | 108’’ | 5+5+5+5+5+5cells |
| MIL19 | 108’’(2.74M) | 42’’(1.06M) | 10’5’’ | 6cells |
| Material | Galvanized wire |
|
Surface treatment | Hot dipped galvanized (Zinc Coated) |
| Galfan coated: 95% Zinc + 5% Aluminum, 90%Zinc +10% Aluminum |
| Zinc(galvanized) + PVC Coated (Gray or Green) |
| Gabion Basket/Gabion Box/Gabion Mesh/Gabion Cage Specification |
| Wire diameter | 2.0-4.0mm |
| Mesh opening | 80 x 100mm | 90 x 110mm | 100 x 120mm | 60 x 80mm etc. |
| Dimension | 1x0.5x0.5m, 1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x0.5m, 3x2x0.3m, 3x2x0.17m, 3x1x1m, 4x1x0.5m, 4x1x1m, 4x2x0.3m, 5x1x1m, 5x1x0.5m,
6x2x0.3m or as request |
| Material | galvanzied wire |
| Wire diameter | 2.0-4.0mm |
| Mesh Size | 60*80mm, 80*100mm, 80*120mm, 100*120mm, 100*150mm, 120*150mm |
| Surface treatment | hot-dipped galvanzied/PVC coated |
| Color | silver/green/black green |
| Application | soil, bridge construction, water bank |
| Specifications offered |
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M3 | |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | length+-3% |
| 2 | 1 | 0.5 | 1 | 1 | width+-5% |
| 3 | 1 | 0.5 | 2 | 1.5 | height+-5% |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | Hole size |
| 1.5 | 1 | 1 | 0 | 1.5 | 60x80mm |
| 2 | 1 | 1 | 1 | 2 | 80x100mm |
| 3 | 1 | 1 | 2 | 3 | 100x120mm |
| 4 | 1 | 1 | 3 | 4 | |
Gabion Hesco Barrier advantages:
1. Great Perviousness, pliability and anti-corrosion.
2. Resist the scour
3. Holistic capability
4. Easy to Construct
5. Economical and environmental protection
Gabion Hesco Barrier Application:
Gabion Box with rock at the project site to form flexible, permeable, monolithic structures to promote rapid growth of natural vegetation. The base section of the Gabion box is divided into compartments and filled with stones at the project site. With lids secured, Gabion box form flexible, permeable, monolithic structures.
Gabion Hesco Barrier Package:
1. by pallets 2.by creat 3.by carton 4.by plastic film then by pallet
Product Tags:
|
|

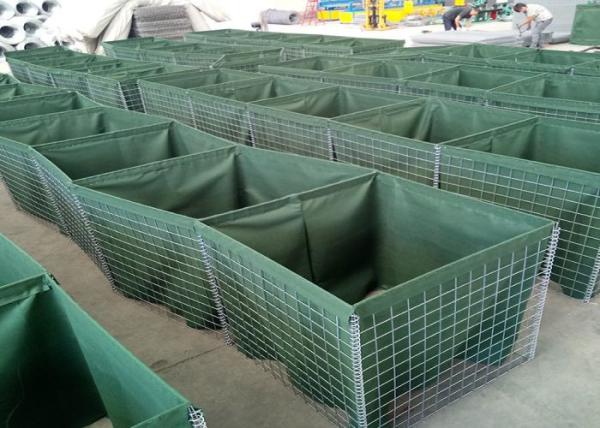

Mil 7 Galvanized Coating 2x1x1m Hesco Blast Walls Images
|
